NESPA uses only VGB CERTIFIED PRODUCTS

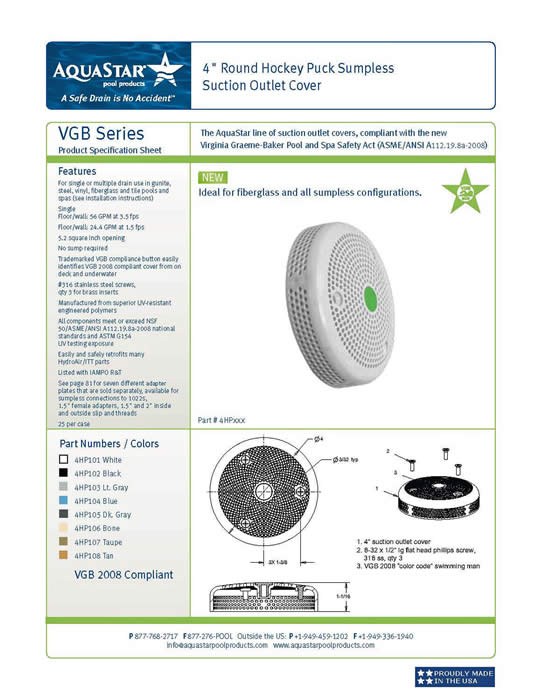

4" Round Hockey Puck Sumpless

Suction Outlet Cover

Anti-Entrapment Flow Rates


Single:


Floor/Wall: 56 GPM at 3.5 fps

Floor/Wall: 24.4 GPM at 1.5 fps

5.2 Square Inch Opening

No Sump Required



part# 4HPxxx  (xxx = color code)



Click on image to view PDF

6" Round Hockey Puck Sumpless

Suction Outlet Cover









Anti-Entrapment Flow Rates


Single:


Floor/Wall: 224 GPM at 6.3 fps

Floor/Wall: 212 GPM at 5.9 fps

Floor/Wall: 53.6 GPM at 1.5 fps

11.4 Square Inch Opening

No Sump Required


part# 6HPxxx  (xxx = color code)



Click on image to view PDF



SPC-3 V - 5" Super Hi-Flo Suction



Anti-Entrapment Flow Rates


Single:


Wall Flow Rate: 180 GPM at 6.42 fps

9.02 Square Inch Opening

No Sump Required



part# 640-358x V  (x = color code)



Click on image to view PDF



Super High Flow 8" Anti-Entrapment Suction

Outlet Cover





Anti-Entrapment Flow Rates


Single:
Floor: 145 GPM at 2.8 fps
Wall: 84 GPM at 1.7 fps


Floor/ Wall: 75 GPM at 1.5 fps

Sumpless Configuration:

Floor: 140 GPM at 2.8 fps
Wall: 84 GPM at 1.7 fps

16.0 Square Inch Opening



part# A8Rxxx  (xxx = color code)



Click on image to view PDF





10" Anti-Entrapment Suction Outlet Cover

Anti-Entrapment Flow Rates


Single:
Floor: 166 GPM at 4.8 fps
Wall: 96 GPM at 2.8 fps


Floor/ Wall: 53 GPM at 1.5 fps



11.5 Square Inch Opening



part# 10AVRxxx  (xxx = color code)



Click on image to view PDF

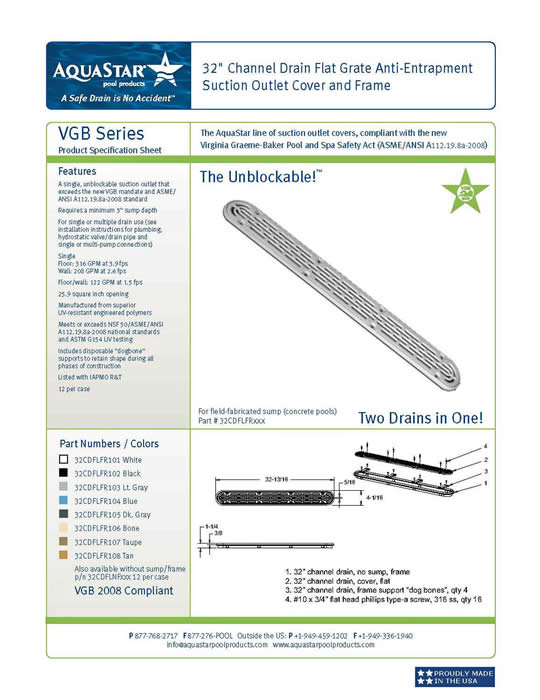

32" Channel Drain Flat Grate Anti-Entrapment

Suction Outlet

Anti-Entrapment Flow Rates


Single:
Floor: 316 GPM at 3.9 fps
Wall: 208 GPM at 2.6 fps


Floor/ Wall: 122 GPM at 1.5 fps



25.9 Square Inch Opening


part# 32CDFLRxxx  (xxx = color code)



Click on image to view PDF
